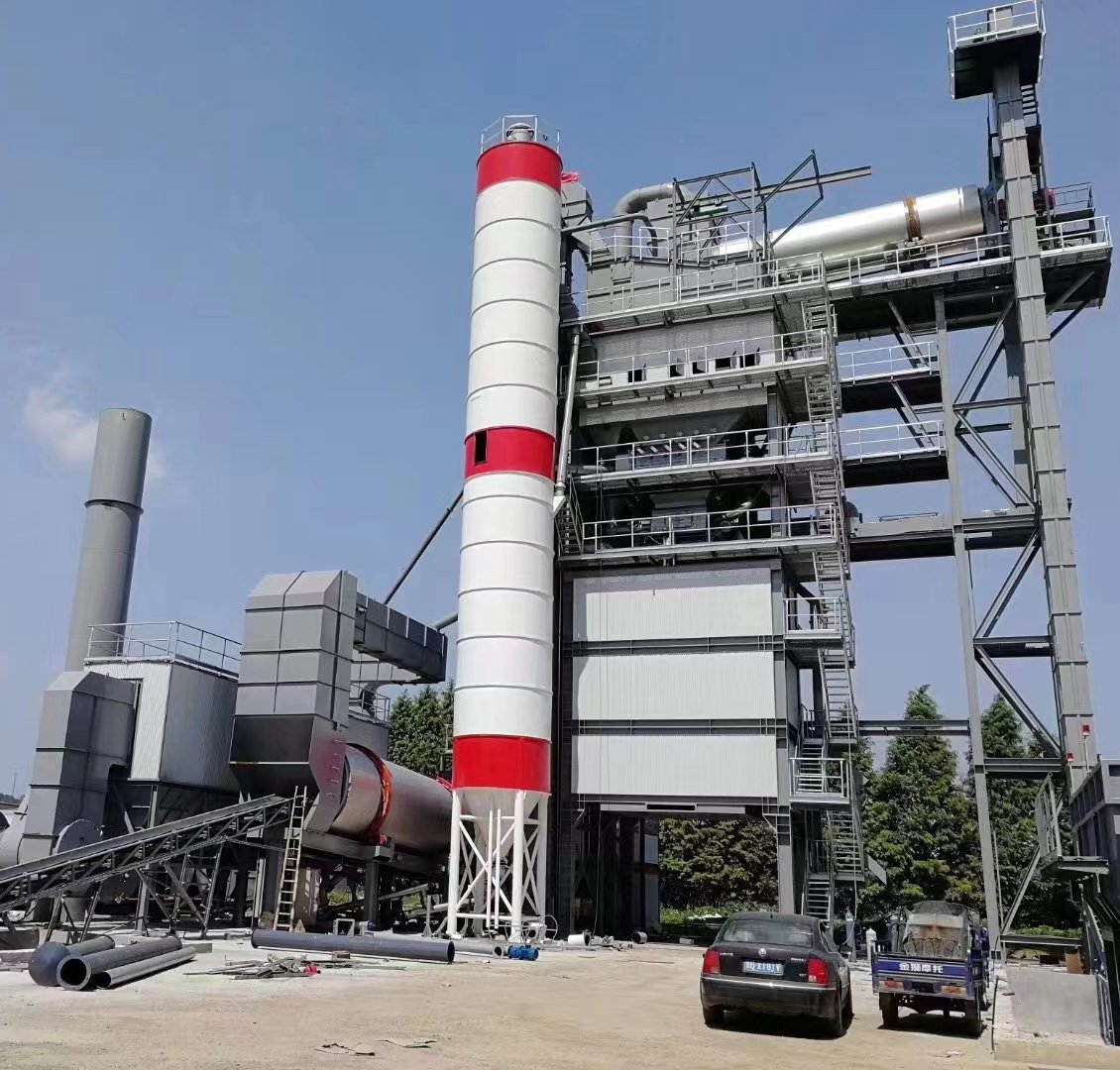

The LB1000 80ton Asphalt Batch Mix Plant, manufactured by CHANGSHA AICHEN INDUSTRY AND TRADE CO., LTD., represents a blend of innovative engineering and reliable performance in the asphalt batching field. This cutting-edge plant is meticulously designed to cater to the needs of construction companies requiring high-quality asphalt for road paving and infrastructure development. Utilizing state-of-the-art technology, this batching plant ensures the efficient mixing of asphalt materials, ultimately leading to improved project outcomes. Application: The LB1000 asphalt batch mix plant is ideal for a range of applications within the construction industry, including highways, urban roads, and airport runways. Its capacity to produce 80 tons of asphalt per hour makes it suitable for large-scale projects that demand high output without compromising quality. The plant's design accommodates various types of aggregates, allowing for the production of different asphalt grades as specified by project requirements. Advantages: One of the standout features of the LB1000 is its advanced cold aggregate feeding system, which operates using frequency conversion speed control for enhanced efficiency. Each discharge gate is equipped with a material shortage alarm to prevent disruptions during operation. The inclusion of a vibrator on the sand bin guarantees continuous material flow, while the isolation screen on top of the cold bin ensures that only appropriate-sized materials enter the system, optimizing the drying process. The drying system of the LB1000 is engineered for maximum efficiency. With a specially optimized blade geometry, this system delivers an exceptional drying and heating process, resulting in a 30% improvement in heating efficiency compared to conventional designs. The fully insulated aggregate dryer reduces cooling time after operation, allowing for quicker transitions between batches. Furthermore, CHANGSHA AICHEN utilizes renowned components throughout the LB1000 plant, including a HONEYWELL temperature control system and a high-efficiency Italian burner, which ensure low emissions and compliance with environmental standards. The flexibility of fuel options—including diesel, heavy oil, and gas—adds to the adaptability of this asphalt batching plant. In addition to its technical advantages, CHANGSHA AICHEN INDUSTRY AND TRADE CO., LTD. prides itself on exceptional customer service and support. The company is committed to providing comprehensive solutions that include installation, training, and ongoing maintenance of asphalt batching plants, ensuring that clients achieve their project goals efficiently. Overall, the LB1000 asphalt batching plant stands out for its efficient design, advanced technology, and the commitment of CHANGSHA AICHEN to quality and customer satisfaction. Whether you are looking for a reliable supplier or a manufacturer of high-performance batching equipment, the LB1000 is your ideal choice for asphalt production. The plant features accurate measurement, simple operation and stable performance which fully meets the requirements of highway construction and maintenance.

Product Details

---

Main Structure

 1. Cold Aggregate Feeding System

- The belt feeder use frequency conversion speed control, speed adjust rang is wide, high working efficiency.

- Every hopper discharge gate have material shortage alarming device, if material shortage or material arching, it will alarm automatically.

- On the sand bin, there is vibrator, so it can guarantee normal working.

- There is isolation screen on top of cold bin, so can avoid large material input.

- The conveyor belt use circular belt without joint, steady running and long performance life.

- At the input port of feeding belt conveyor, there is one simple screen can avoid big material input which can enhance hot efficiency and make sure the drying drum, hot aggregate elevator and vibration screen work reliability.

2. Drying System

- The blade geometry of the dryer has been optimized to deliver an exceptionally efficient drying and heating process with reduced energy consumption,improve heating efficiency 30% than conventional design; Because of High heating efficiency, drum surface temperature is relatively low, so the cooling time after operation is considerably shorted.

- Fully insulated and clad aggregate dryer. Drive by electric motors and gear unit through polymer friction drive support rollers.

- Adopt famous brand HONEYWELL temperature intelligent control system.

- Adopt high combustion efficiency Italian brand burner, make sure low exhaust gas emission (like CO2,low No1 & No2, So2).

- Diesel, heavy oil, gas, coal or multi-fuel burners.

3. Vibrating screen

- Improved vibration and amplitude to optimize impact on the available screen.

- Wear-resistant charging system with uniform distribution of the particle mix.

- Wide open doors for easy access and screen meshes are simple to replace, so the down time is reduced.

- The best combination of vibrating direction & screen box dip angle, ensure ratio and screening efficiency.

4. Weighing system

- Adopt famous brand METTLER TELEDO weighing sensor, make sure accurate weighing, in order to make sure the asphalt mixture quality.

5. Mixing system

- Mixer are designed by 3D mixing design, with long arms, shortened shaft diameter and a bi-directional mixing blades array.

- The discharging process has been completely redesigned, the discharge time is minimal.

- The distance between blades and bottom of the mixer is also restrained to the optimal minimum.

- Bitumen is sprayed from multi-points evenly over aggregate by one pressurized bitumen pump to achieve full coverage and high mixing efficiency.

6. Dust Collecting System

- Gravity primary dust collector collecting and recycling bigger fine, saving consumption.

- Bag house secondary dust filter control emission be lower than 20mg/Nm3, eco-friendly.

- Adopt USA Dopont NOMEX filter bags, high temperature resistance and long service life, and the filter bags ban be replaced easily and quickly with no need for special tools.

- Intelligent temperature and control system, when the dust air temperature is higher than set data, cold air valve will be opened automatically for cooling, avoid the filter bags are damaged by high temperature.

- Adopt high voltage pulse cleaning technology, contributing to a lower bag wearing, longer lifespan and better dust removal performance.

CLICK HERE TO CONTACT US

Specification

---

FAQ

---

Q1: How to heat the asphalt?
A1: It's heated by heat conducting oil furnace and direct heating asphalt tank.


Q2: How to choose the right machine for project?
A2: According to the capacity require per day, need to work how many days, how long destination site, etc.
Engineers online will provide service to help you choose the right model also.


Q3: What is the delivery time?
A3: 20-40 days after receiving advance payment.

Q4: What are the payment terms?
A4: T/T, L/C, Credit card (for spare parts) are all accept.

Q5: How about after-sale service?
A5: We provide the whole after-sales service system. The warranty period of our machines is one year, and we have professional after-sale service teams to promptly and thoroughly solve your problems.

Introducing the LB1000 80ton Asphalt Batch Mix Plant, a pinnacle of engineering excellence in the asphalt manufacturing industry. This robust plant is explicitly designed to deliver high-performance output while maintaining operational efficiency in various construction projects. Ideal for road construction and maintenance, the LB1000 is not just another piece of equipment, but a vital asset that complements your entire project lifecycle. Its advanced technology ensures precise asphalt batching, optimizing the mix quality and contributing to overall project durability. Moreover, its competitive concrete block machine price makes it an attractive option for businesses looking to maximize their return on investment. The LB1000 is built with a focus on reliability and user-friendly operation, featuring a modular design that simplifies both installation and maintenance. Its intelligent control system allows for real-time monitoring and adjustments, ensuring consistent output that meets high industry standards. Designed to handle a variety of asphalt mixes, the LB1000 can easily adapt to your specific project requirements, resulting in reduced waste and enhanced productivity. The durable construction guarantees longevity, making it a smart choice for those looking to invest in a dependable production solution without compromising on quality or budget. With its emphasis on high efficiency, this plant showcases how an investment in technology can lead to significant cost savings, especially when considering the competitive concrete block machine prices in the market today. Furthermore, the LB1000 Asphalt Batch Mix Plant is not only focused on performance but also on environmental responsibility. Equipped with efficient filtration and recycling systems, it minimizes emissions and promotes sustainable practices in asphalt production. This makes it an ideal choice for companies committed to reducing their ecological footprint. In a world where the demand for infrastructure continues to grow, selecting the right equipment is crucial. With the LB1000, you're not merely purchasing a plant; you are choosing a partner in your growth journey, offering high performance at a value that aligns with the competitive landscape of concrete block machine prices. Whether you are a small contractor or a large construction firm, the LB1000 is designed to meet your needs, ensuring you stay ahead in the competitive construction industry.
